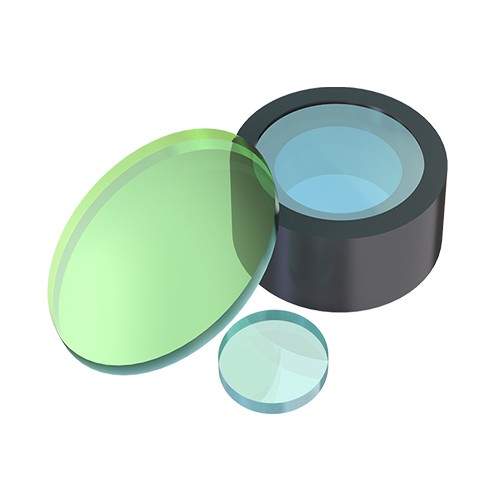

λ/2 Air-Gap Zero-Order Waveplates
- Category： Laser Waveplates
- Material:Fused Silica
- Design: Zero-Order Waveplate
- Mounting: Standard Optical Holders
We offer standard λ/2 Air-Gap Zero-Order Waveplates of size 12.7mm and 25.4mm, which are specially designed for wavelengths of 355nm, 532nm, 632.8nm, 780nm, 850nm, 1064nm, 1550nm
Material:Quartz,Schlieren Grade
Angle of Incidence:0°
Surface Quality:10-5
Parallelism:＜1 arcsec
Retardance:±λ/300
Wavefront Error:≤λ/10@632.8nm over the full aperture
Thickness Tolerance:+0/-0.25mm
Coating :AR Coating Rmax＜0.25%@Design Wavelength
Damage Threshold:1.95J/cm²with10ns,10Hz
