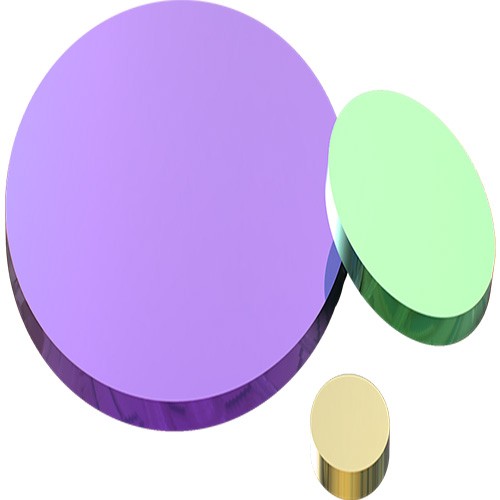

High Performance Shortpass Filter

Shortpass filters provided by YZSY Optics feature wide blocking bandwidth, high blocking depth,high transmission and high blocking slope. Widely used in fluorescence excitation spectrum measurement, Raman spectrum, spectral group, astronomical observation application etc., they are also be widely used in imaging optical systems and machine vision systems to eliminate interfering light whilst improving the imaging quality and sensitivity of the system.

Material:UV Fused Silica

Transmitted Wavefront error:λ/ 4 @ 633 nm

Parallelism:＜30arcsec

Surface Quality:40-20

Diameter Tolerance:＋0.0/-0.1mm

Thickness:2mm ±0.2mm

Central Wavelength (λC)Tolerance:±1%

Transmission Tavg:＞90%

Blocking Depth:OD2

Blocking Slope:＜1%

CA:＞90%

Angle of Incidence:0°
