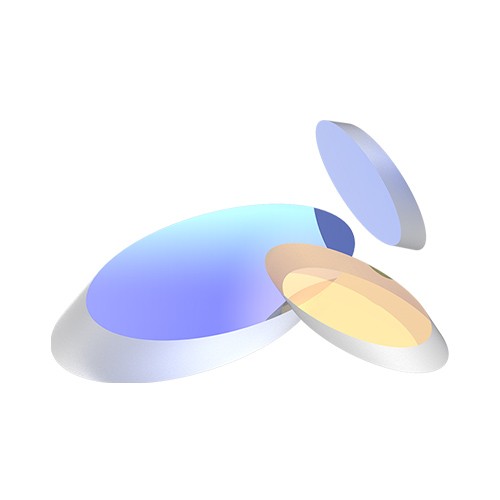

UV Fused Silica Brewster Windows

Brewster window are manufactured based on the total reflection character of the material, the S polarizing light is reflected partially and the P polarizing light almost transmitted fully when the light passes through at the fixed angle of incidence (Brewster Angle of the material)

Material:UV Fused Silica

Transmitted Wavefront Error:＜λ/10 @ 633 nm

Parallelism:＜5 arcsec

Surface Quality:10-5

Diameter (Minor Axis) Tolerance:+0.0/-0.1mm

Thickness Tolerance±0.2mm

Bevel:Protective Bevel 0.2~0.5mmX45°

Coating:Optional

Brewster Angle:55°34’ @633nm
