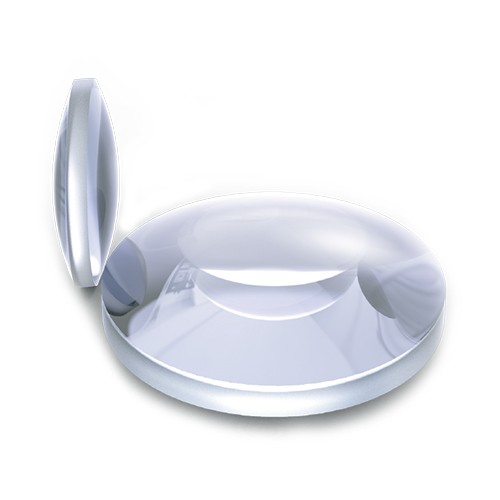

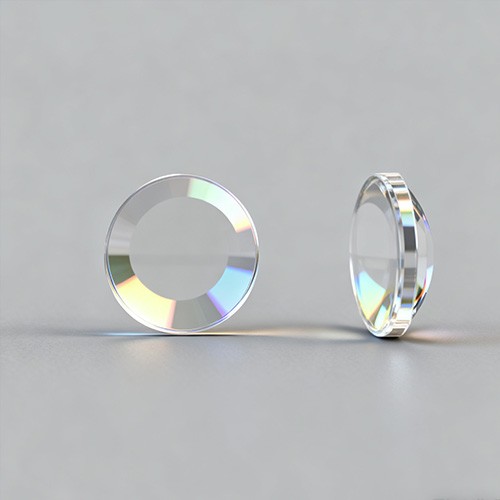

UV Fused Silica Double-Convex (DCX) Lenses

Double-Convex Lenses will focus light to a point. These lenses are made of two convex surfaces with equal radius. The focal length is positive. DCX Lenses are typically used in relay imaging systems or finite conjugate imaging systems. The larger the conjugate ratio, the larger the aberration in the imaging system . We offer uncoated or AR coating Double-Convex Lenses suitable for your application.

Material:UV Fused Silica

Design Wavelength:587.6nm

Diameter Tolerance:+0.0 /-0.1mm

Center Thickness Tolerance:±0.2mm

Irregularity (P-V):λ/4 @632.8nm

Focal Length Tolerance（EFL）:±2%

Centering Tolerance:3 arcmin

Surface Quality:20-10

Bevel:0.2mmX45°

Coating: As per customer requirements
