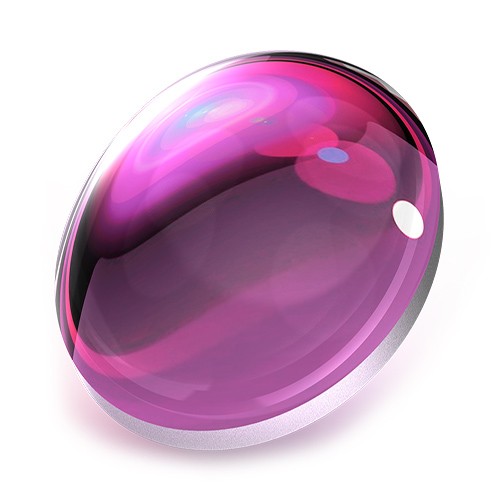

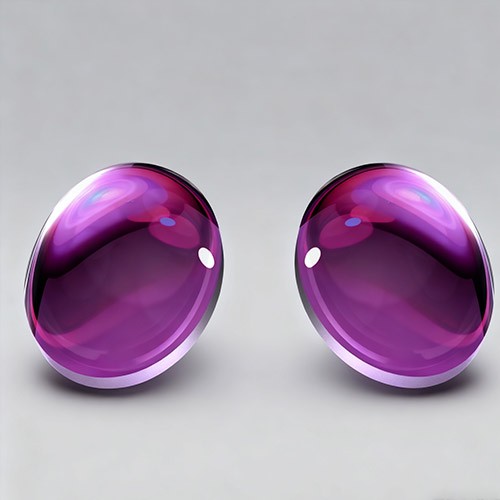

UV Fused Silica Plano-Convex (PCX) Lenses

Category： Lenses
Lens Type:UV Fused Silica Plano-Convex Lens
Material:UV Fused Silica
Optical Surface:Plano-Convex
Application Range:UV Optics Field
INQUIRY EMAIL

Applications

Ideal for deep ultraviolet (UV) spectroscopy, laser systems, metrology instruments, beam expansion/collimation, mask aligners, wafer inspection, and high-precision optical setups requiring low thermal expansion and high transmittance in UV bands. Used in semiconductor lithography, medical imaging, microlithography, and scientific research.

Key Features

✅ Ultra-high UV transmittance (down to 190 nm).
✅ Low coefficient of thermal expansion (CTE ~0.5×10⁻⁶ /°C).
✅ High homogeneity & minimal bubble/inclusion content.
✅ Precision grade surface accuracy (λ/8 or better interferometric flatness).
✅ Available uncoated or with advanced anti-reflection (AR) coatings.

Advantages Over Alternatives

�� Superior UV transparency vs. borosilicate or fused silica competitors.
�� Near-zero thermal drift ensures stable performance under temperature fluctuations.
�� Absence of birefringence eliminates polarization-dependent losses.
�� Chemical durability against aggressive cleaning agents.
�� Customizable dimensions for OEM integration.

Resulting Benefits

�� Maximized light throughput in UV systems → improved signal-to-noise ratio.

�� Enhanced system reliability in demanding environments (vacuum, cryogenics).
�� Absolute minimum wavefront distortion for high-fidelity imaging.
�� Long-term cost savings via extended service life & reduced maintenance.

Technical Specifications Table

Attribute	Value / Range	Google Search Terms
Material	UV Fused Silica JGS1	UV Fused Silica Lens, JGS1 Material
Design Type	Plano-Convex (PCX)	Plano Convex Lens, PCX Optics
Effective Focal Length (EFL)	6 mm – 200 mm	Fused Silica EFL, Short FL Lenses
Diameter	3 mm – 75 mm	Small Diameter Lenses, Large Format Optics
Thickness Tolerance	±0.1 mm	Precision Thickness Optics
Surface Flatness	λ/8 @ 633 nm (or better)	High Flatness Lenses, Interferometric Quality
Transmission Range	190 nm – 2.1 µm	Deep UV Transmission, Infrared Silica Lenses
Thermal Expansion Coeff.	0.5 × 10⁻⁶ /°C	Low CTE Lenses, Thermally Stable Optics
Refractive Index (n_d)	1.458	N-BK7 Alternative, Silica Refractive Index
Coating Options	Uncoated / AR-coated (Ravg <0.2%)	Anti-Reflection Coated Lenses, Broadband AR Coatings

Why Choose These Lenses?

Perfect for high-power UV lasers, spectroscopy systems, and industrial inspection equipment where thermal stability and broadband transmission are critical. The combination of pure fused silica material + plano-convex design minimizes aberrations while maximizing durability.

For procurement or custom quotes, request quotations using terms like "custom UV fused silica plano convex lens supplier" or "JGS1 plano convex lenses manufacturer."
