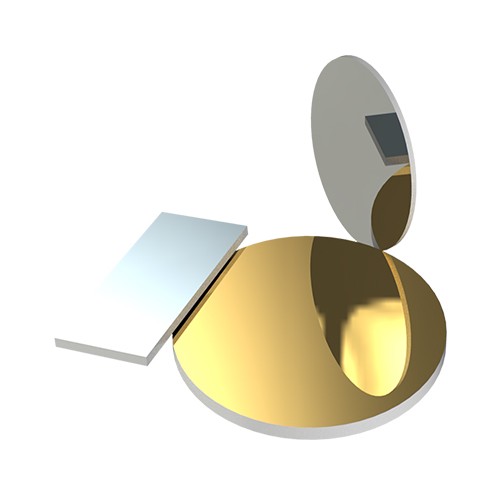

Fused Silica Standard Precision Flat Mirror

Flat Mirrors are designed for the variety of applications, including beam steering or folding, interferometry, or as optical components in imaging systems. High surface accuracy can decrease the amount of light lost through dispersion. We offer uncoated and coated mirrors for your applications.

Material:Fused Silica

Surface Accuracy:λ/ 4 @ 633 nm

Parallelism:＜3 arcmin

Surface Quality:40-20

Back Surface:Polished

Dimensions Tolerance:+0.0/-0.1mm

Thickness Tolerance:±0.2mm

Bevel:Protective Bevel 0.2~0.5mmX45°

Coating: As per customer requirements
