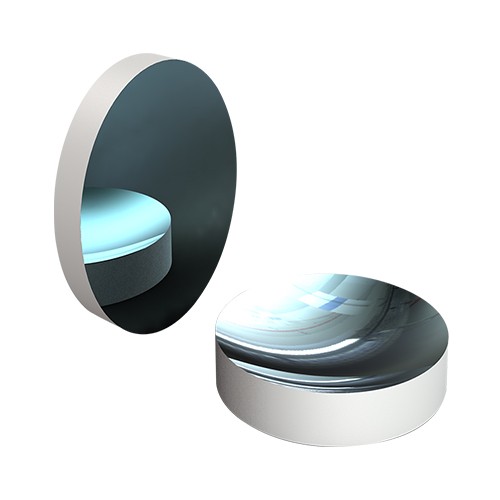

H-K9L Concave Spherical Mirror
- Category： Flat Mirror
- Material:K9
- Type:ConcaveMirror
- Surface:Spherical
Spherical mirrors have a positive focal length and can gather incident light. Suitable for beam focusing application.We offer the variety of uncoated and coated spherical mirrors.
Material:H-K9LOptical Glass
Irregularity (P-V):λ/4 @ 633 nm
Centering Tolerance:＜3 arcmin
Surface Quality:40-20
Back Surface:Grinding or Polish
Dimension Tolerance:+0.0/-0.1mm
Thickness Tolerance:±0.2mm
Focal Length Tolerance:±2%
Bevel:Protective Bevel 0.2mmX45°
Coating :As per customer requirements
