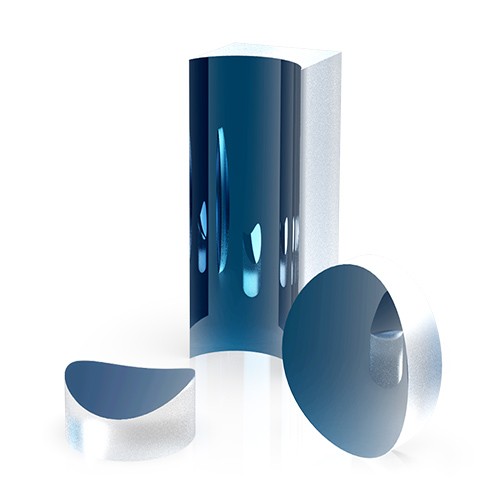

K9 Plano-Concave Cylindrical Mirror
- Category： Flat Mirror
- Material:H-K9L(BK7)
- Customization:available
- Profile:PlanoConcave
- Reflectivity:High
Cylindrical mirrors have a positive focal length and can focus incident light. They are suitable for light focusing applications. We provide uncoated and coated cylindrical mirrors.
Material:H-K9LOptical Glass
Irregularity (P-V):1λ@ 633 nm
Centering Tolerance:＜3 arcmin
Surface Quality:40-20
Back Surface:Grinding or Polish
Dimension Tolerance:+0.0/-0.1mm
Thickness Tolerance:±0.2mm
Focal Length Tolerance:±2%
Bevel:Protective Bevel 0.2mmX45°
Coating :As per customer requirements
