Quartz glass tubes come in various types, each with its specific uses and advantages. Below are the quartz glass tubes produced by our company and related information:

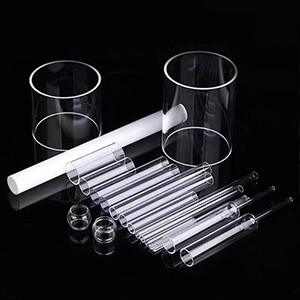

Fused Quartz Tube:

Applications: Widely used in laboratory equipment such as high-temperature furnaces, as well as refining equipment for special high-purity products.

Advantages: Fused quartz tubes have high heat resistance, allowing routine use between 1100℃ to 1200℃， and can withstand short-term temperatures up to 1400℃.

Specification Range: Diameter ranges from 1.5-180mm, wall thickness from 0.5-8mm, and length from 10-3000mm.

Dehydroxylation Tube:

Applications: Mainly used in semiconductor processes and optical instruments that require a high-purity environment.

Advantages: Exhibits extremely high chemical stability and temperature resistance, providing an ultra-pure reaction environment.

Specification Range: Specific specifications depend on the product, and are typically customizable according to customer needs.

Ultraviolet Filtering Tube:

Applications: Used in situations where blocking ultraviolet rays is necessary, such as water treatment and air purification.

Advantages: Effectively filters out ultraviolet rays, protecting human health and preventing material aging.

Specification Range: Specific specifications depend on the product, and are typically customizable based on application requirements.

Synthetic Quartz Glass Tube:

Applications: Primarily used in the material support field of high-end semiconductor processes, photomask substrate business, and in the aerospace industry.

Advantages: Features high strength, corrosion resistance, high-temperature endurance, ablation resistance, high wave transparency, and electrical insulation properties.

Specification Range: Specific specifications depend on the product, and are typically customizable according to high-end application needs.
