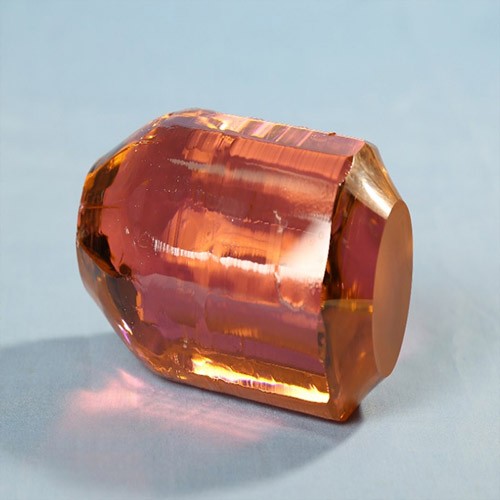

ER:YAG Laser crystals

Category： Laser Crystals
Material: Er:YAG Crystal
Application: Medical Lasers
Design: Solid-State
Durability: High Damage Threshold
INQUIRY EMAIL

Er:YAG is an excellent 2.94 μm laser crystal widely used in laser medical systems and other fields. The Er:YAG crystal is the most important active medium for 3 μm lasers, and has the characteristics of high slope efficiency, ability to operate at room temperature, and a laser wavelength within the eye-safe range. The 2.94 μm Er:YAG laser has been extensively used in the medical field for surgical procedures, dermatological cosmetic treatments, dentistry, and other therapies.

Dopant Concentration	Er：30-50at%
Orientation	<111> within±5°
Size	Rods: Diameter（4-5）mm, length≤130mm
Size	Also customized according to customer requirements
Interference Fringe	≤1/8λ/inch@632.8nm
Extinction Ratio	≥28db
Dimensional Tolerance	Diameter: 0/-0.05mm,Length: +/-0.5mm
Ends parallel Parallelism	≤ 10"
Perpendicularity to rod axis	≤ 5′
Flatness	≤λ/10 @632.8nm
Surface Quality	10-5 (MIL-O-13830A)
Chamfer	0.1±0.05mm*45°
