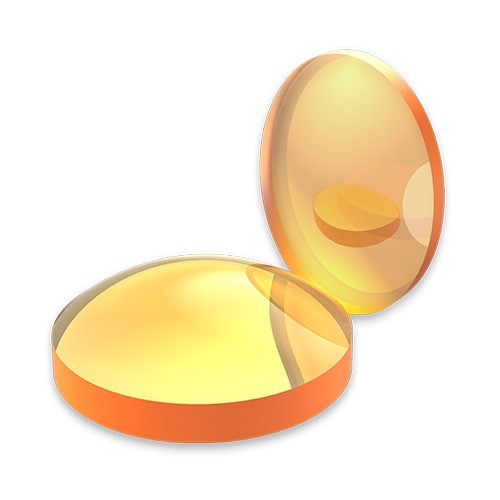

Positive Meniscus Lenses

Meniscus lens is a concave-convex lens, which has an outer convex surface and an inner concave surface. If the outward radius is greater than the inward radius, the lens has a positive focal length and can be used as a magnifying lens. YZSY Optics offers uncoated or IR2 AR coatings meniscus lenses. Germanium substrates are ideal for IR applications.

Material:CVD Laser Grade（ZnSe）

Design Wavelength:10.6μm

Diameter Tolerance:+0.0/-0.1mm

Center Thickness Tolerance:±0.2mm

Focal Length Tolerance（EFL）:±1%

Centering Tolerance:＜3 arcmin

Surface Quality:40-20

Bevel:0.2mmX45°

Coating:Optional
