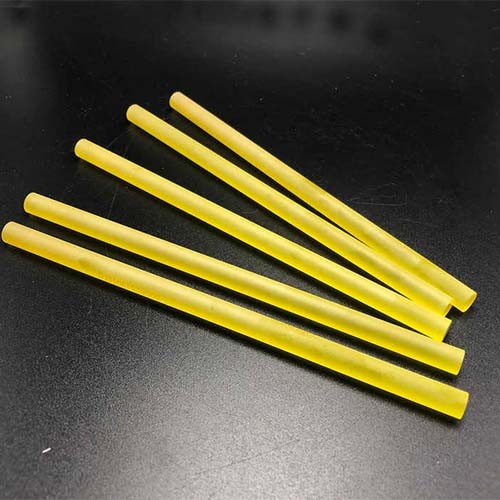

ND:YAG Laser Crystals

Category： Laser Crystals
Material: ND:YAG Crystal
Application: Industrial Lasers,Medical lasers
Surface: Polished/Anti-Reflection
Doping Type: Neodymium-Doped
INQUIRY EMAIL

Nd: YAG crystal is the earliest and most famous laser crystal. Its superior basic properties make it often used in near-infrared and far-infrared solid-state lasers, as well as their frequency doubling and tripling. It is widely applied in scientific research, medical, industrial, and military lasers.

Nd Dopant Concentration	Nd: 0.3-1.1at%
Orientation	<111> within±5°
Size	Rods: Diameter（3-30）mm, length≤ 300mm Slabs: （3-50）mm（3-8）mm（30-200）mm ( Customizable services are available.)
Interference Fringe	≤1/8λ/inch@632.8nm
Extinction Ratio	≥28db
Dimensional Tolerance	Diameter: 0/-0.05mm,Length: +/-0.5mm
Ends parallel Parallelism	≤ 10"
Perpendicularity to rod axis	≤ 5′
Flatness	≤λ/10 @632.8nm
Surface Quality	10-5 (MIL-O-13830A)
Chamfer	0.1±0.05mm*45°
AR-Coating Coating Reflectivity:	R≤0.2%@1064nm,
AR-Coating Coating Reflectivity:	R>99.8%@1064nm and T>95%@808nm
Damage Threshold	≥800MW/cm2
