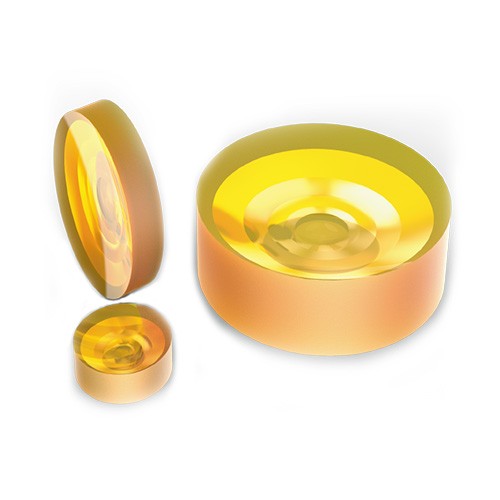

Zinc Selenide (ZnSe) Double-Concave (DCV) Lenses

Double-Concave Lenses can diverge the light, its focal length is nedtive, which is made of  two concave surfaces with same radius.These lenses are ideal for the application of beam expansion, light projection or the expansion of the focal length. YZSY Optics offers uncoated or AR coatings Double-Concave Lenses for your appliation.

Material:（ZnSe）CVD Laser Grade（ZnSe）

Design Wavelength:10.6μm

Diameter Tolerance:+0.0/-0.1mm

Center Thickness Tolerance:±0.2mm

Focal Length Tolerance（EFL）:±1%

Centering Tolerance:＜3 arcmin

Surface Quality:40-20

Bevel:0.2mmX45°

Coating:Optional
