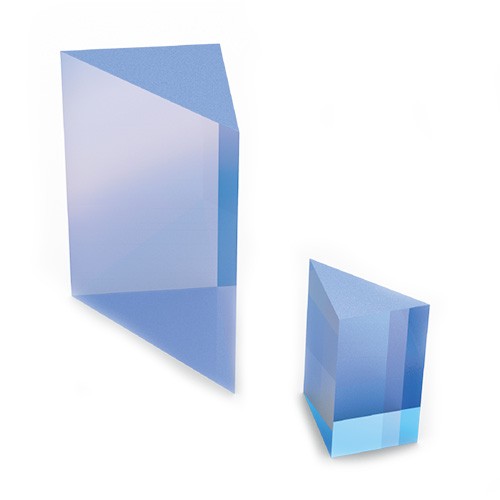

K9 High Precision Right Angle Prisms

Right angle prisms are typically used to bend the image path or turn the light path by 90°.Combining two right angle prisms can also combine the image and deflect the beam. We suggest that use the right angle prism with Hypotenuse aluminum coated for the application of large AOI.YZSY Optics offers a wide range of right angle prisms for your application

Material:H-K9L Optical Glass

Dimension Tolerance:+0.0/-0.1mm

Surface Accuracy:λ/10 @ 632.8nm

Surface Quality:10-5

Angle Tolerance:±15arcsec

Pyramid Tolerance:＜5 arcmin

Bevel:＜0.25mmX45°

Coating:Optional
