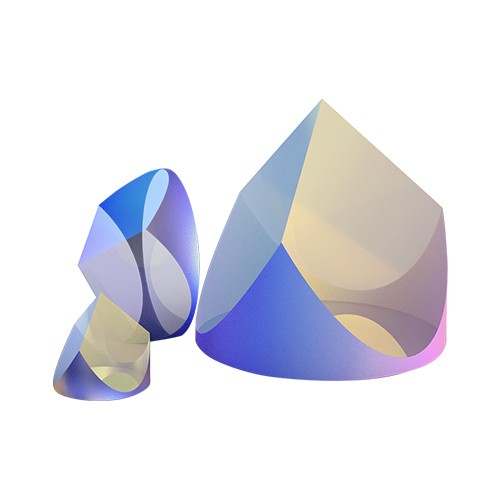

H-K9L Corner Retroreflectors
- Category： Prisms
- Material:K9
- Application:Optical
- Transmission:Broadband
- Stability:VibrationResistant
Corner prism Retroreflectors are ideal for alignment to return incident light back to the light source.
Materia:lH-K9L Optical Glass
Diameter (D) Tolerance:+0.0/-0.1mm
Height(H)Tolerance:±0.2mm
Beam Deviation :Parameters vary by model
Surface Accuracy:λ/10 @ 632.8nm
Surface Quality:40-20
Bevel:＜0.25mmX45°
Coating: As per customer requirementst
