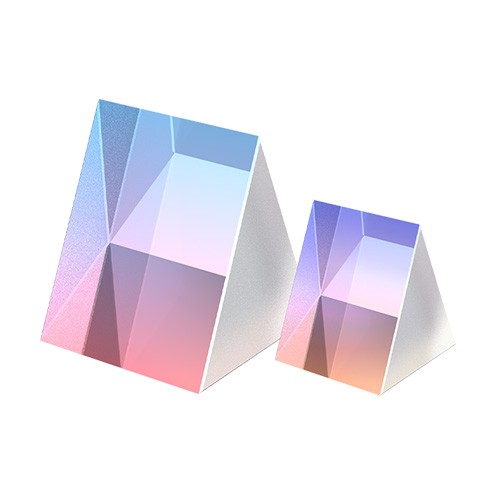

Equilateral Dispersion Prisms

Equilateral Dispersion Prisms feature three equal 60° angles,which can separate the light of different wavelengths. For example,the dispersion prism can replace the diffraction grating to divide the white light into visible spectrum.Dispersive prisms are typically used at the minimum angle of deviation. This is the angle for which the wavelength of interest will travel parallel to the base of the prism, and the angle of incidence is equal to the angle of refraction when measured with respect to the normal of the prism face at the respective interface.
YZSY Optics is a professional optical component supplier in China. We can customize a variety of dispersion prisms to meet your requirements according to your needs. If you have any questions or needs, you can contact us, and we will serve you wholeheartedly.

Material:F4(CDGM),H-F4(CDGM),H-ZF13(CDGM),Caf2,ZNSE

Dimension Tolerance:+0.0/-0.1mm

Clear Aperture:70%

Surface Quality:60-40,40-20

Bottom Surface (adjacent to two datum planes):Ground or Polished

Other Surface:Polish

Bevel:＜0.25mmX45°

Coating:Optional
