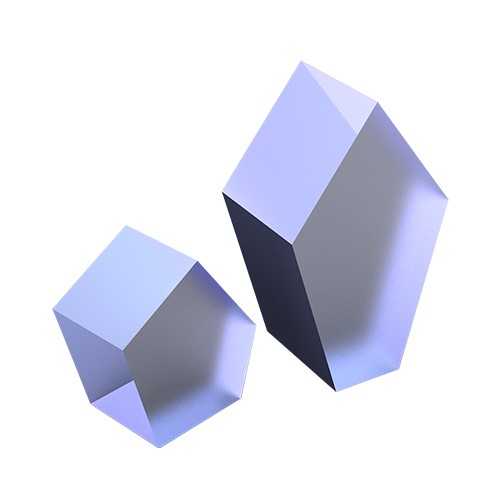

H-K9L Penta Prisms
- Category： Prisms
- Material:H-K9L
- Geometry:Fixed Deviation
- Durability:Robust
Penta prism can deflect light by 90°, it is a five-sided prism, the reflected light is not affected by slight movements of the prism, so it can be used to define right angles in optical systems.
Material:H-K9L Optical Glass
Dimension Tolerance:+0.0/-0.2mm
Beam Deviation :90˚±3'
Surface Accuracy:λ/10 @ 632.8nm
Surface Quality:40-20
Bevel:＜0.25mmX45°
Coating :Reflected surface (Aluminum Coated + Black paint protected)、 Incident surface and emitted Surface (single layer MgF2 AR coated)
