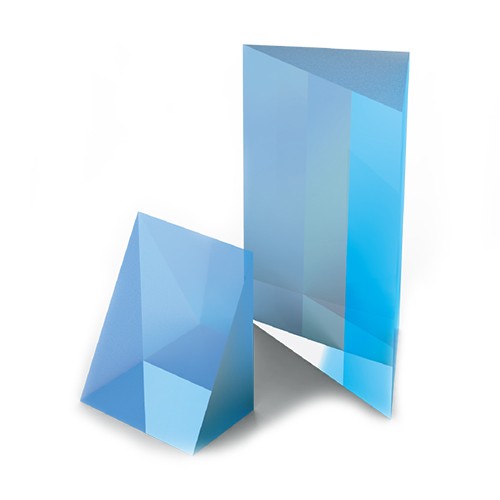

H-K9L Standard Precision Right Angle Prisms

The right angle prisms are typically used to bend the image path or turn the light path 90°，combing two right angle prism also can combine the image and deflect the beam. We suggest that you use the right angle prism with Hypotenuse aluminum coated for the application of large AOI. YZSY Optics offers a wide range of right angle prisms for your application.
Right angle prisms are typically used to bend the image path or turn the light path by 90°.Combining two right angle prisms can also combine the image and deflect the beam. We suggest that use the right angle prism with Hypotenuse aluminum coated for the application of large AOI.we offer a wide range of right angle prisms for your application.

Material:H-K9L Optical Glass

Dimension Tolerance:+0.0/-0.2mm

Surface Accuracy:λ/4 @ 632.8nm

Surface Quality:40-20

Angle Tolerance:±3 arcmin

Pyramid Tolerance:＜10 arcmin

Bevel:0.25~0.5mmX45°

Coating :As per customer requirements
