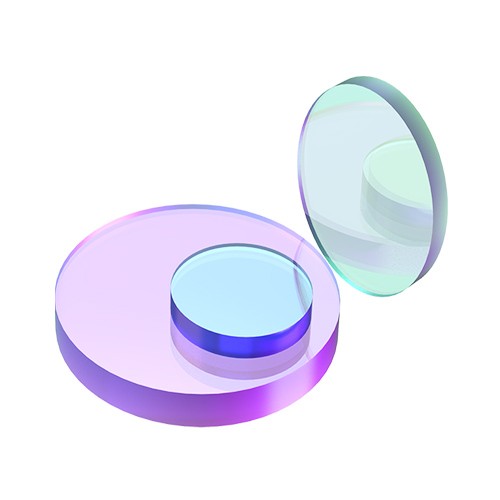

Laser Flat Windows
- Category： Laser windows
- Material:K9
- Application:Laser Systems
- Coating Options:AR/Uncoated
- Customization:Supported
Flat windows are flat-parallel plates which can protect electronic sensors or detectors without blocking transmission. Flat windows do not change the magnification of the system. We offer various sizes of Laser flat windows.
Materia:lH-K9L Optical Glass
Surface Accuracy:λ/10 @ 633 nm
Parallelism:＜5 arcsec
Surface Quality:20-10
Diameter Tolerance:+0.0/-0.1mm
Thickness Tolerance:±0.2mm
Bevel:Protective Bevel 0.2~0.5mmX45°

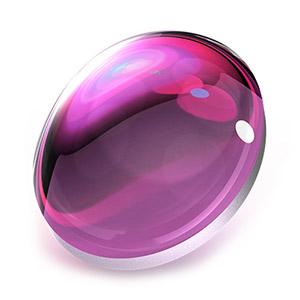

PREVIOUS：Laser Plano-Convex (PCX) Lenses
