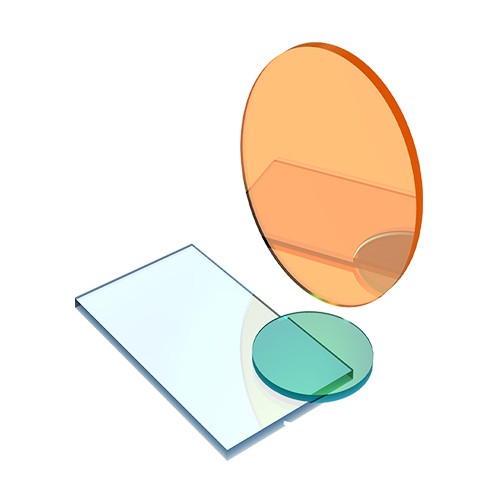

High Energy Nd:YAG Laser Mirrors

YZSY Optics offers standard high power Nd: YAG Laser Line Mirrors with angle of incidence of 0° and 45°and size of 25.4 mm. These high power Nd: YAG laser mirrors are made of corning 7980 as substrate material and using ultra-hard dielectric coating process. They have high reflectivity and laser damage threshold up to 40J/cm at specified wavelength and are widely used in laser processing field. We can also help to customize Nd: YAG laser mirrors to meet your requirements.

Material:UV Grade Fused Silica

Irregularity (P-V):λ/10@632.8nm

Clear Aperture:≥80%

Surface Quality:10-5

Diameter Tolerance:+0/-0.25 mm

Thickness Tolerance:±0.5 mm

Bevel :Protective Bevel
