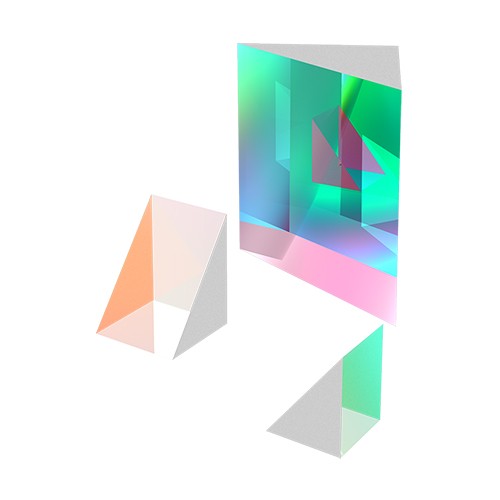

Laser Right Angle Prims

Right Angle Prisms are typically used to bend the image path or turn the light path 90°, combing two right angle prism also can combine the image and deflect the beam. We recommend using 2 right angle prisms with hypotenuse aluminum coated for applications with large AOI. YZSY Optics offers a wide range of right angle prisms to suit your application。

Material:H-K9L Optical Glass,UV Fused Silica(JGS1)

Dimension Tolerance:+0.0/-0.1mm

Surface Accuracy:λ/10@632.8nm

Surface Quality:20-10

Angle Tolerance:±15 arcsec

Pyramid Tolerance:＜5 arcmin

Bevel:＜0.25mmX45°
