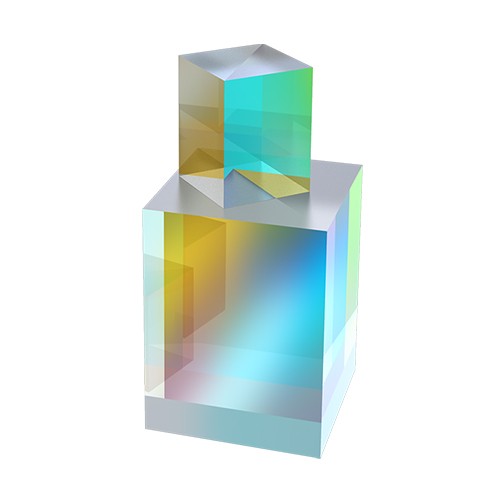

Laser Line Polarizing Cube Beamsplitter

Laser Line Polarizing Cube Beamsplitters are designed for laser wavelengths for gas Laser and solid Laser. Laser Line Polarizing Cube Beamsplitters can divide a random polarized incident light into two orthogonally emitted line polarized light. S-polarized light will be reflected at an angle of 90° from the incident light, while the P-polarized light is transmitted out directly. Laser line polarizing cube beamsplitters consist of a pair of right angle prisms glued together. This structure features high extinction ratio and high transmission, and ensure a good parallelism between incident light and transmission light. YZSY Optics offers laser line polarizing cube beamsplitters with sizes of 10 mm and 12.7 mm, they are widely used in laser device, laser system, education and scientific research, laser processing and other related fields. We can also provide customized beamsplitters according to your requirements.

Extinction Ratio: Tp:Ts＞1000：1

Angle of Incidence:0°

Material:H-ZF3

Transmittance :Tp＞90%

Reflectivity :Rs＞99.5%

Surface Quality:40-20

Dimension Tolerance:+0.0/-0.2

Transmission Beam Deviation:＜5 arc min

Reflection Beam Deviation: 90°±5 arc min

Transmission Wavefront Error:＜λ/4@633nm over the full aperture

Coating:AR Coating Rabs＜0.25%@Design Wavelength

Bevel:Protective Bevel
