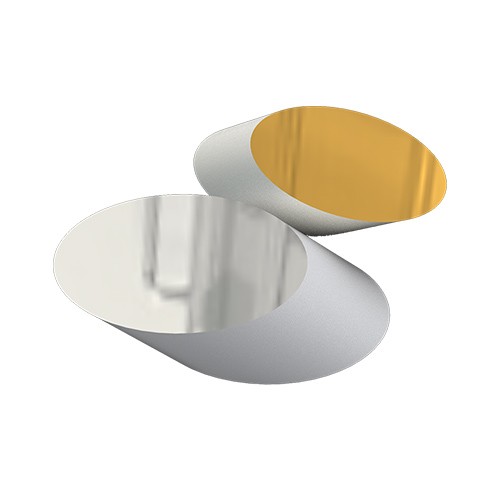

H-K9L Elliptical Mirror
- Category： Flat Mirror
- Material: H-K9L Optical Glass
- Geometry: Elliptical Profile
- Precision: High Tolerance Manufacturing
- Usage: Scientific Instruments
Elliptical mirrors can be used in astronomical and research applications. Elliptical mirrors can be used to bend and fold light precisely with minimum distortion. YZSY Optics provides uncoated and multi-reflective coated Elliptical Mirrors.
Material:H-K9LOptical Glass
Surface Accuracy:λ/10 @ 633 nm
Parallelism:＜1 arcmin
Surface Quality:10-5
Back Surface :Polished
Minor Axis Diameter Tolerance:+0.0/-0.2mm
Thickness Tolerance:±0.5mm
Bevel:Protective Bevel 0.2~0.5mmX45°
Coating:Optional
