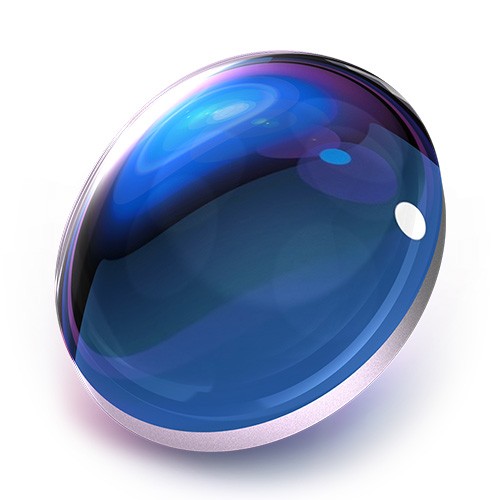

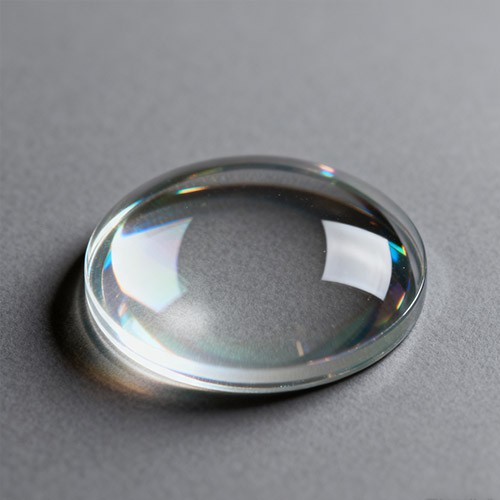

K9 Plano-Convex (PCX) Lenses

A Plano-Convex (PCX) lens will focus light on a point. One side is flat, the other side is convex. Its focal length is positive and is used to aim and focus a monochromatic light source. The convex surface is orientated facing the incident light. We offer uncoated and double sided broadband AR coated products to suit your application . Germanium (Ge), Silicon (Si), or Zinc Selenide (ZnSe) substrates are ideal for Infrared (IR) applications, fused silica is suitable for UV applications.

 Parameters:

MaterialH-K9L Optical Glass

Design Wavelength587.6nm

Diameter Tolerance+0.0/-0.1mm

Center Thickness Tolerance±0.2mm

Irregularity (P-V)λ/4@632.8nm

Focal Length Tolerance±2%

Centering Tolerance3 arcmin

Surface Quality40/20~60/40

Bevel0.2mmX45°

Coating: As per customer requirements.
