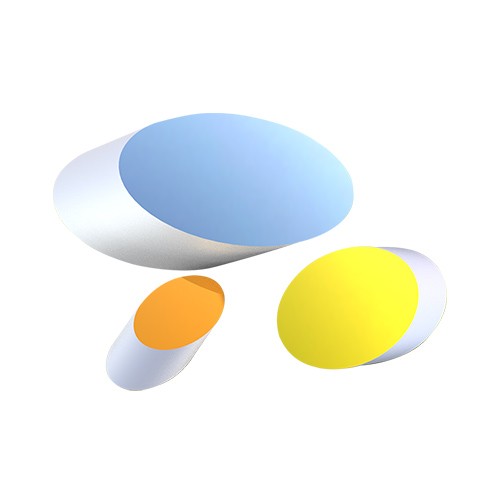

Fused Silica Elliptical Mirror

Category： Flat Mirror
Elliptical mirrors can be used in astronomical and research applications. Elliptical mirrors can be used to bend and fold light precisely with minimum distortion. YZSY Optics provides uncoated and mu
Application: Laser Optics
Geometry: Elliptical Profile
Design: Focus Control
INQUIRY EMAIL

Elliptical mirrors can be used in astronomical and research applications. Elliptical mirrors can be used to bend and fold light precisely with minimum distortion. YZSY Optics provides uncoated and multi-reflective coated Elliptical Mirrors.

Material:Fused Silica

Surface Accuracy:λ/10 @ 633 nm

Parallelism:＜1 arcmin

Surface Quality:10-5

Back Surface:Polished

Minor Axis Diameter Tolerance:+0.0/-0.2mm

Thickness Tolerance:±0.5mm

Bevel:Protective Bevel 0.2~0.5mmX45°

Coating:Optional
