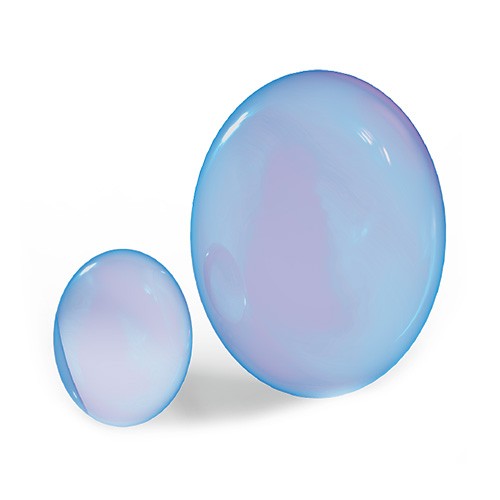

UV Fused Silica Ball Lenses

Ball lenses are commonly used to improve signal quality and coupling efficiencey between an optical fiber emitter and optical fiber detector, which is used in endoscopy, bar code scanning, pre-processing material of Aspheric Lens etc.  The short back focal length can be used to reduce the necessary distance from the ball lens to the optical fiber

Material:UV Fused Silica

Design Wavelength:@ 587.6nm

Diameter Tolerance:+/- 0.005mm

Roundness:±0.003mm

Irregularity (P-V):λ/4 @632.8nm

Surface Quality:40-20

Coating:Uncoated
