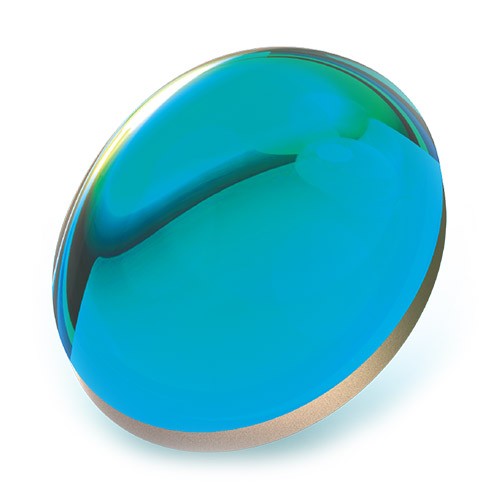

Calcium Fluoride (CaF2) Plano-Convex (PCX) Lenses

A Plano-Convex (PCX) lens will focus light on a point. One side is flat, the other side is convex. Its focal length is positive and is used to aim and focus a monochromatic light source. The convex surface is orientated facing the incident light. YZSY Optics offers uncoated and double sided broadband AR coated products to suit your application . Germanium (Ge), Silicon (Si), or Zinc Selenide (ZnSe) substrates are ideal for Infrared (IR) applications, fused silica is suitable for UV applications.

Material:CaF2 single-crystal

Design Wavelength:587.6nm

Diameter Tolerance:+0.0/-0.1mm

Center Thickness Tolerance:±0.1mm

Focal Length Tolerance:±1%

Centering Tolerance:＜3 arcmin

Surface Quality:40/20~60/40

Bevel:0.2mmX45°

Coating:As per customer’s requirements
