High Quality Laser Krypton Lamp for Fiber Laser Cutting Machine

High Quality Laser Krypton Lamp for Fiber Laser Cutting Machine

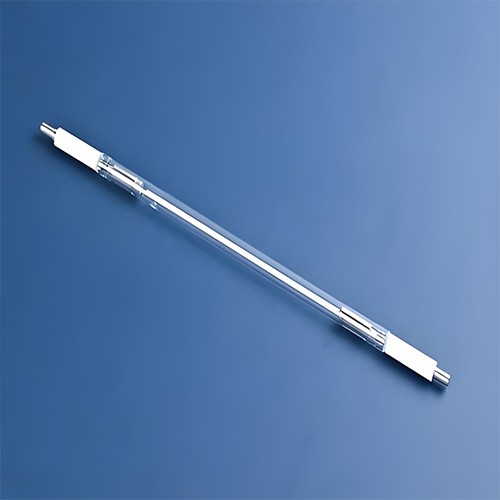

Krypton lamp

Krypton lamps are the pump light sources for solid-state lasers . Because the luminescence spectrum matches the absorplion band of YAG:Nd+3 crystal, and the relative light energy ullization ratio is relalively high, it is the most imporant YAG continuous solid-state laseroptical pump light source.

Basic Parameters

Working Substance

Filled gas: High-purity kypton gas (puritly usualy 299.99%). Some special purpose krypton lamps may be mixed with other inert gases(such as argon)to optimize performance

Lamp Type and Structure

Common types: Pulsed krypton lamps, continuous krypton lamps, long-arc krypton lamps, short-arc krypton lamps, etc. The structure includes a quarlz glass envelope, electrodes (tungsten electrodes), leads, etc.

Dimensions: Depending on the application,the length ranges from a few centimeters to dozens of cenlimeters, and the tube diameter isapproximately 5-20 mm.

Photoelectric Parameters

Spectral Characteristics

Emission spectrum: Mainly concentrated in the infrared, visible, and utraviolet bands, with characteristic spectral lines including.Infrared region: 750 nm,766.5 nm, 794.8 nm, etc.

Visible region: 482 nm,530.9 nm, 557 nm, 647.1 nm (red light, the strongest spectral line), etc

Ultraviolet region: Below 350 nm (with lower intensity).

Spectral distribution characteristics. A combination of continuous and line spectra, with energy concentrated in the red and near.

infrared regions. lt is suitable as a red light source or a laser pumping source (e.g.. pumping ruby lasers).

Power and Energy

Continuous krypton lamps: The power range is typically from tens of was to several kilowalts, with typical values such as 100 w, 500W, and 1000 W The luminous efficiency is about 20-40 lm/W (visible light efficiency).

Pulsed krypton lamps: The single-pulse energy can reach tens to thousands of joules, the pulse width is generaly 0.1-10 ms. and therepetition frequency can range from a few Hz to tens of Hz (depending on cooling conditions).
